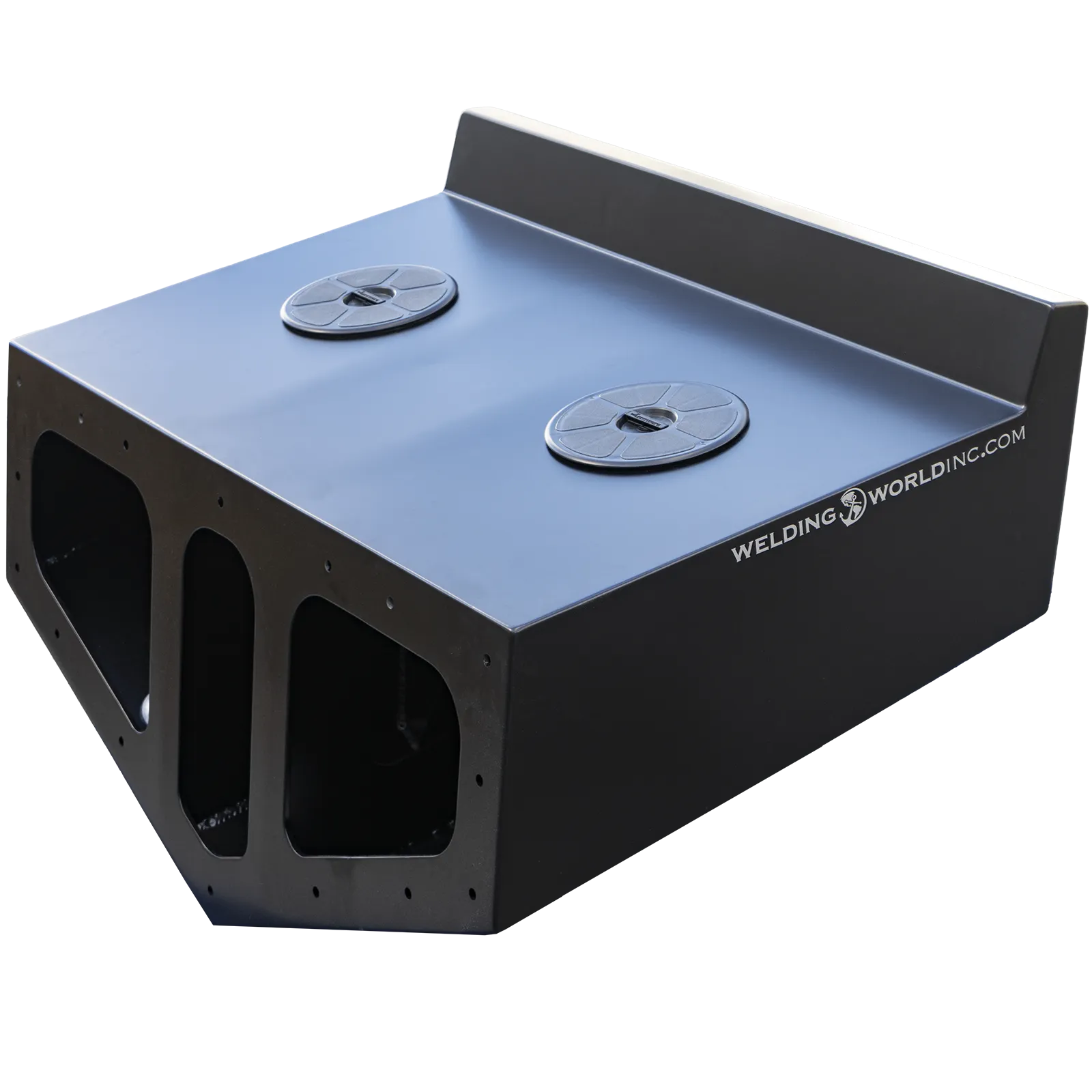

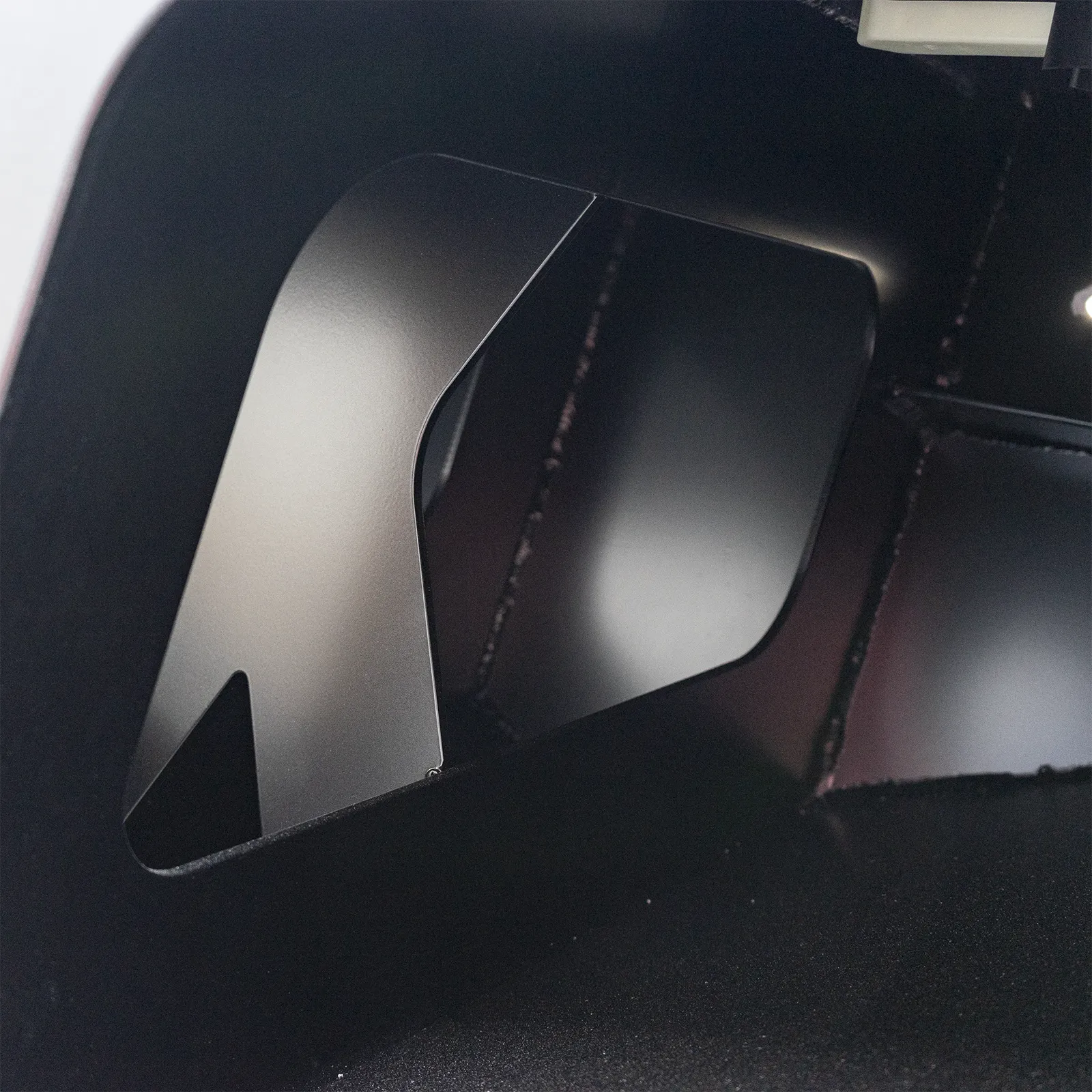

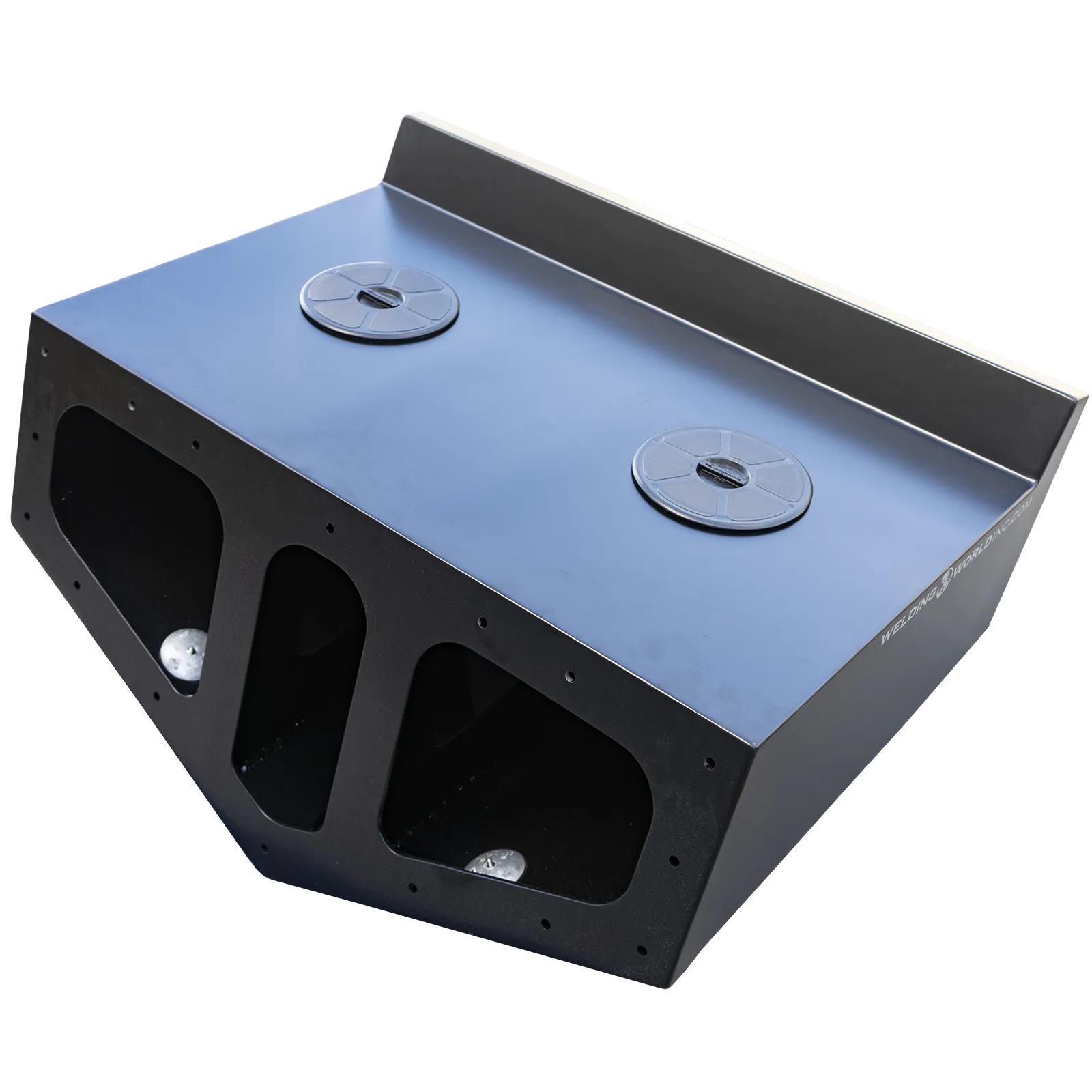

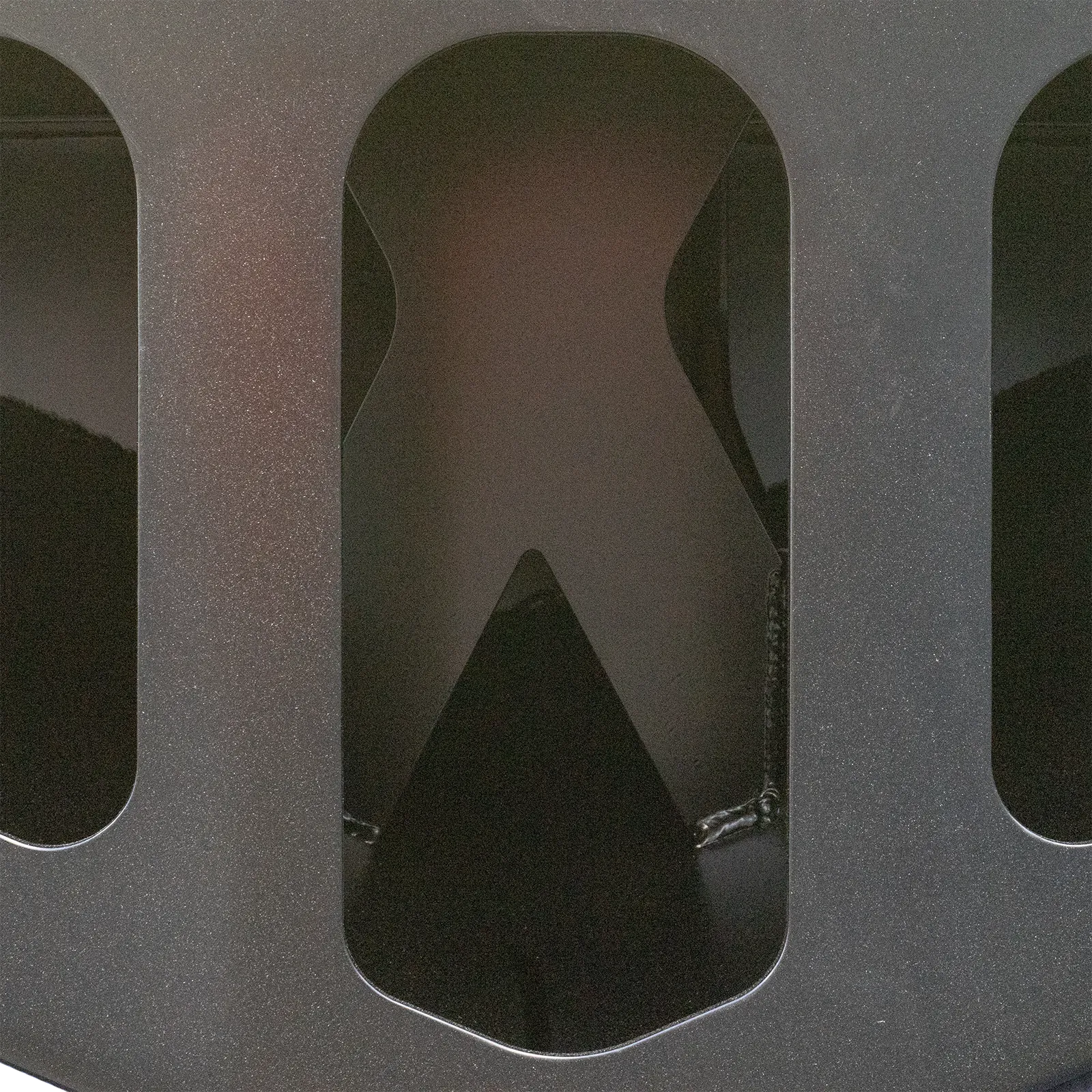

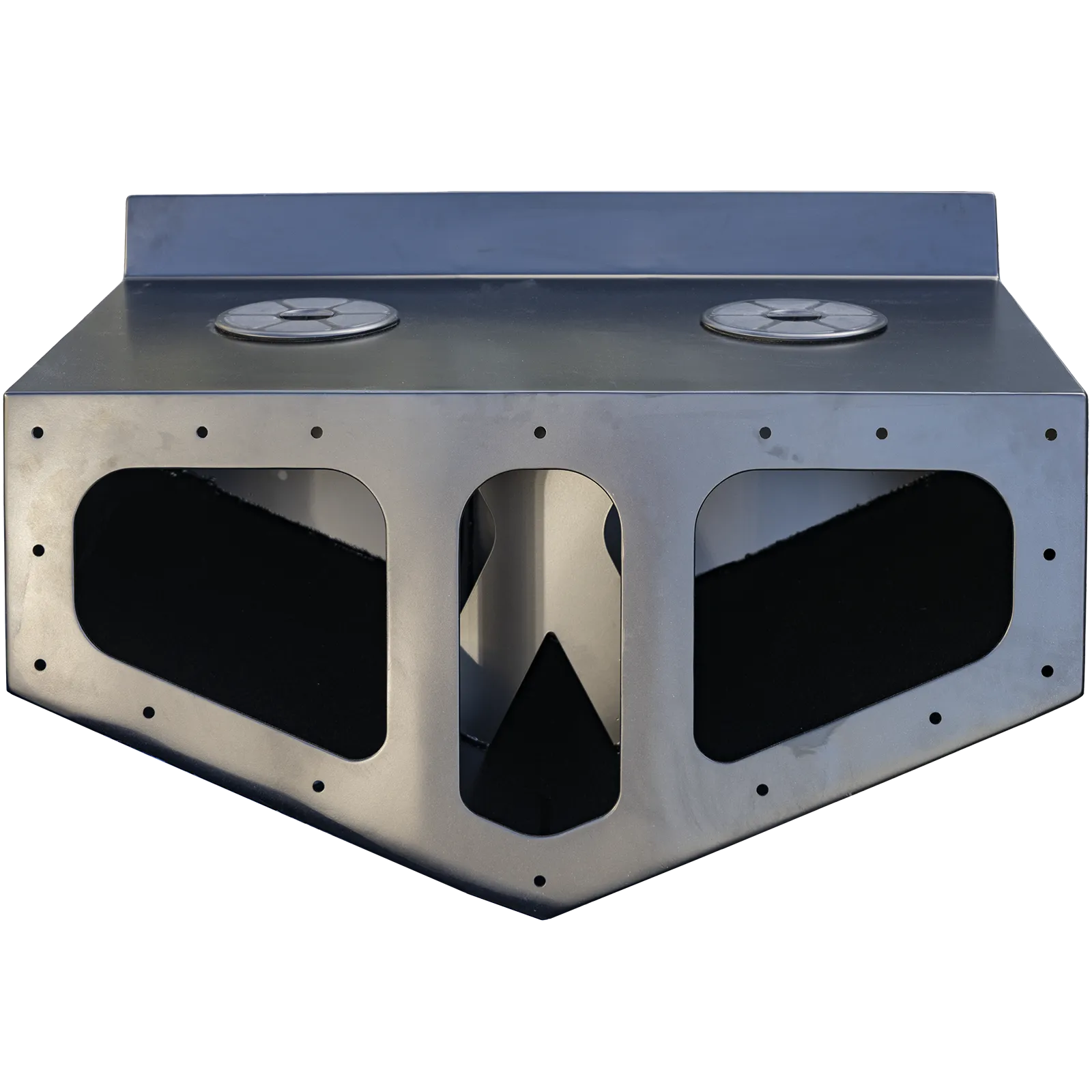

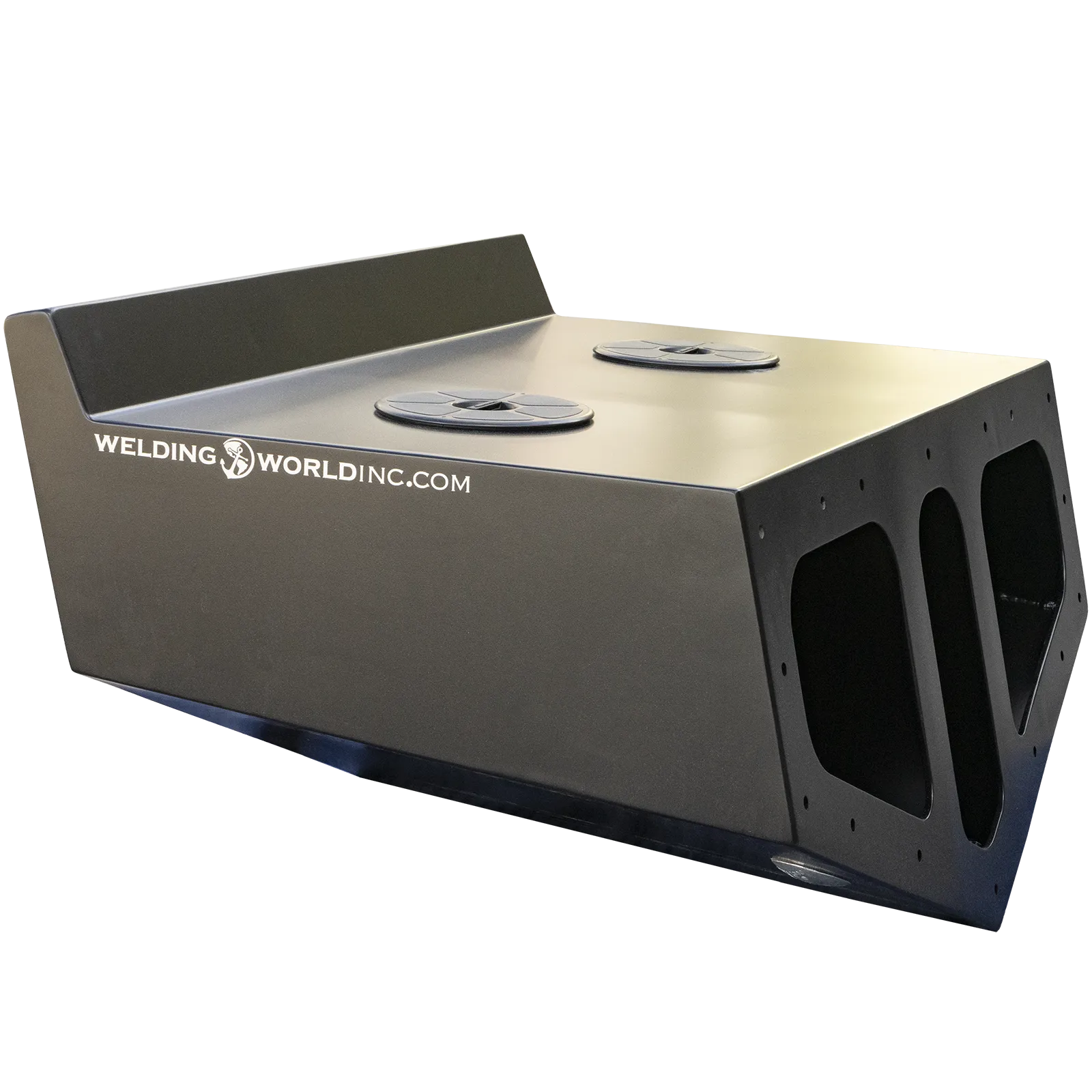

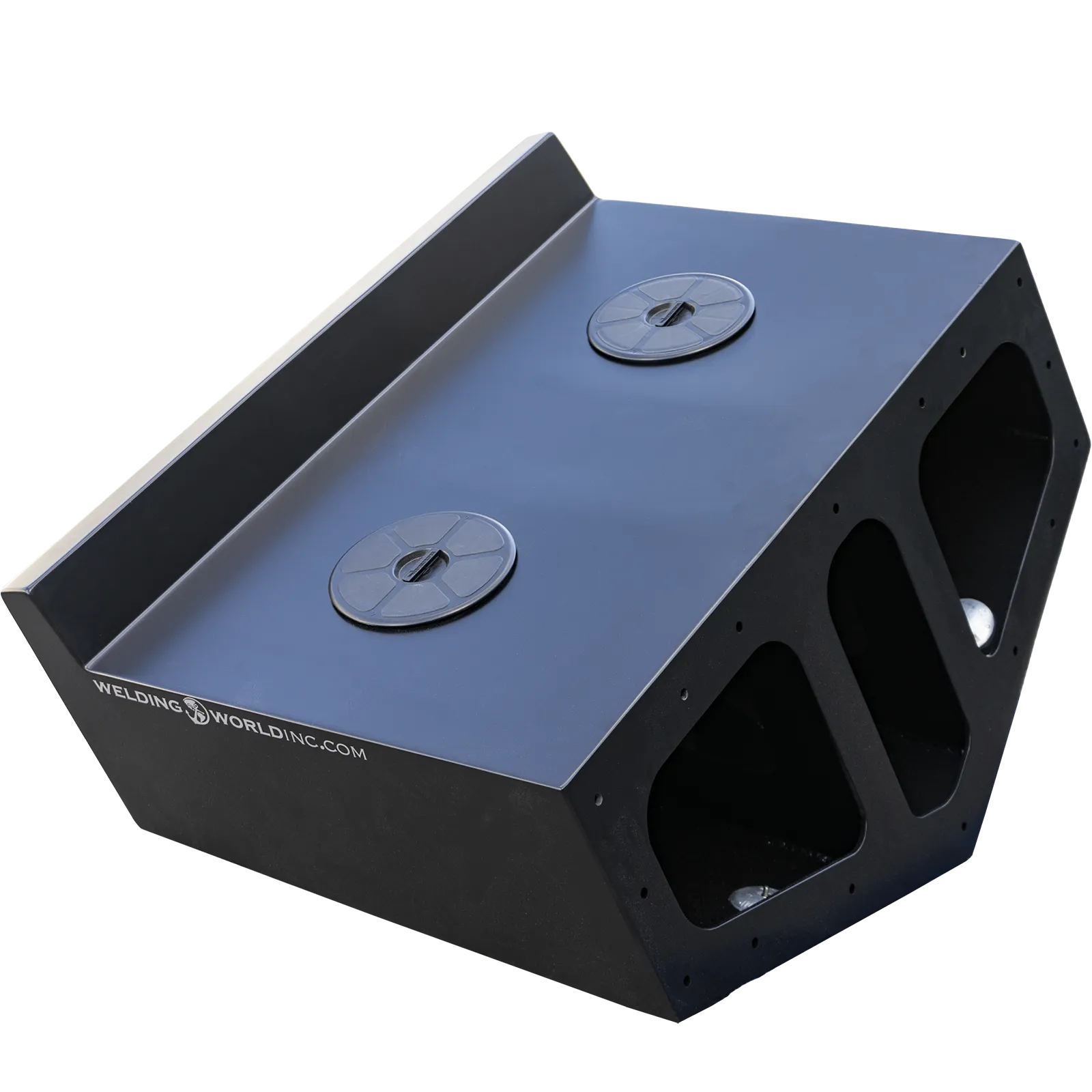

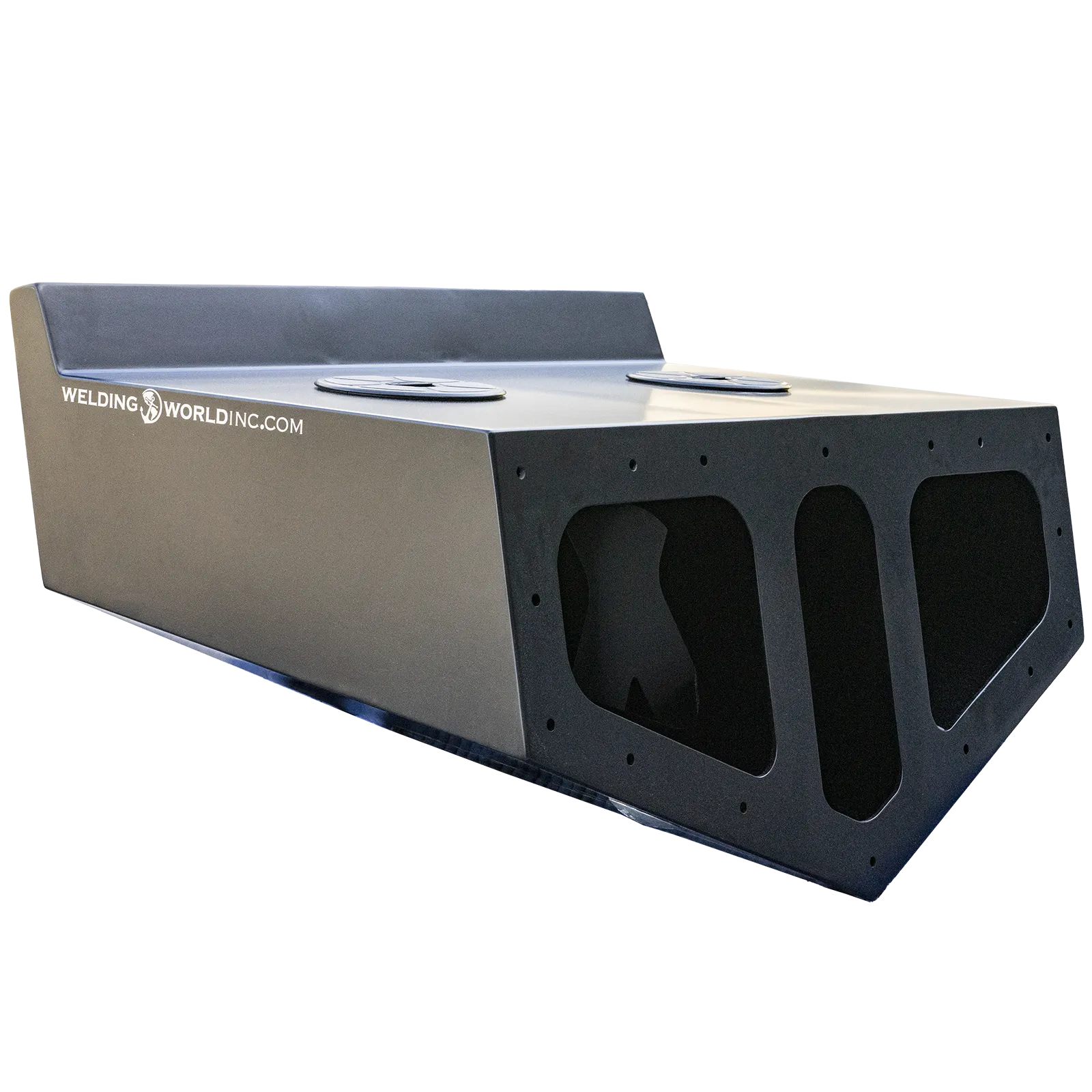

Originally developed for a South American navy's Special Forces stealthy and fast RHIBs, this bracket is a lean, mean, twin outboard setbacking machine. It sports a heavy-duty, super rigid twin rib internal structure, with an AI & FEA induced "x" reinforcing cross-member, as well as many strategically placed structural reinforcements that will provide you with a truly mil-spec bracket with a whooping 130 gallons of extra flotation in its airbox.

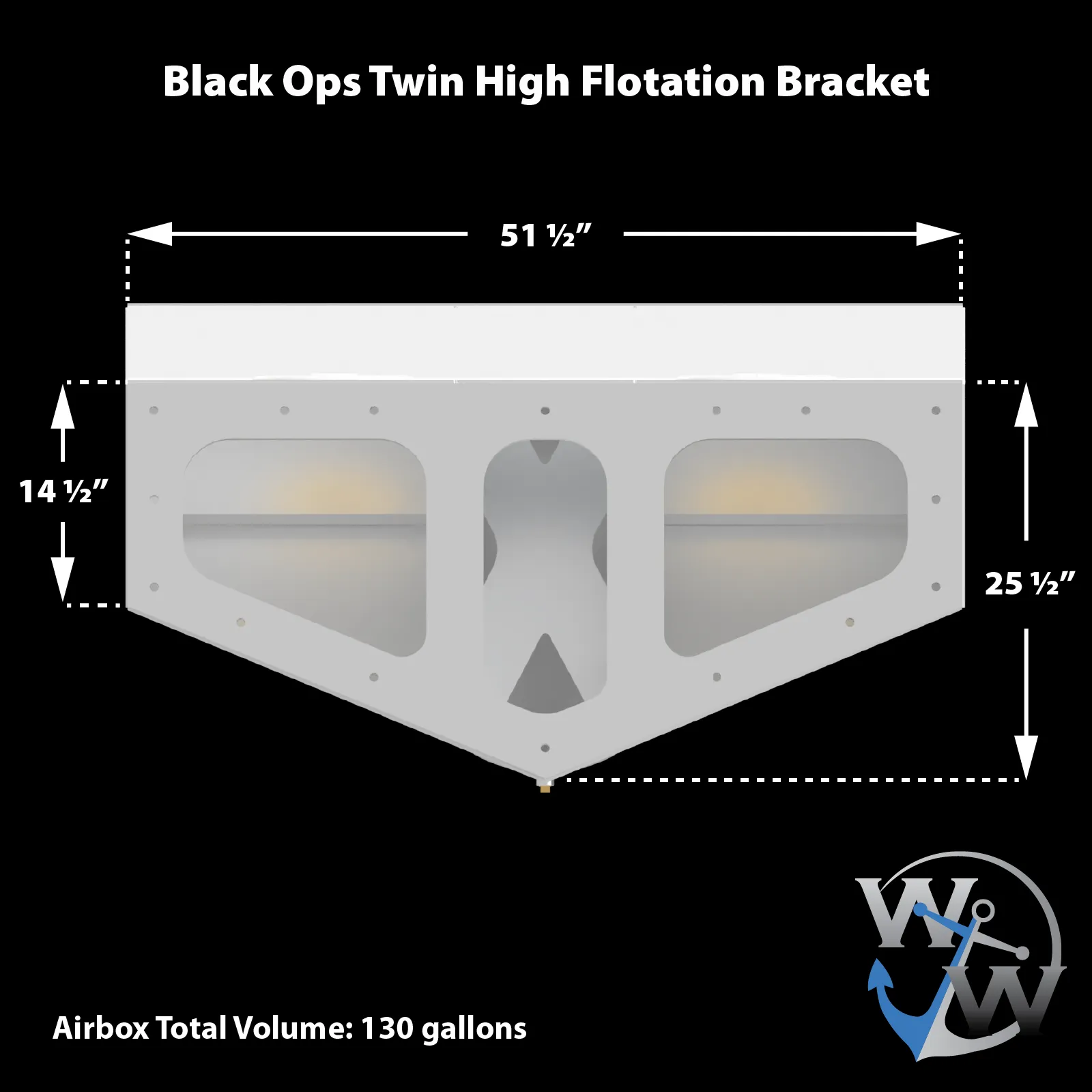

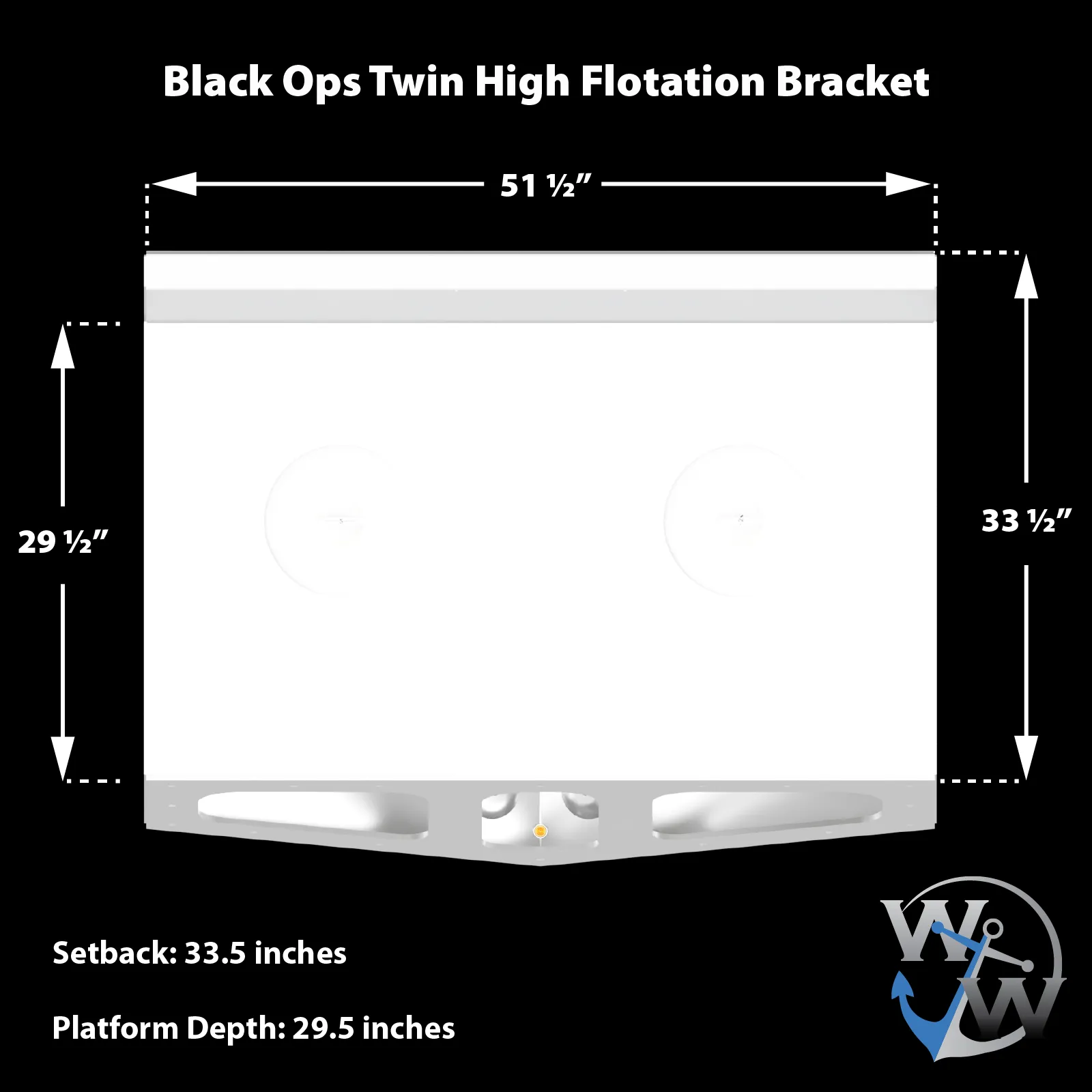

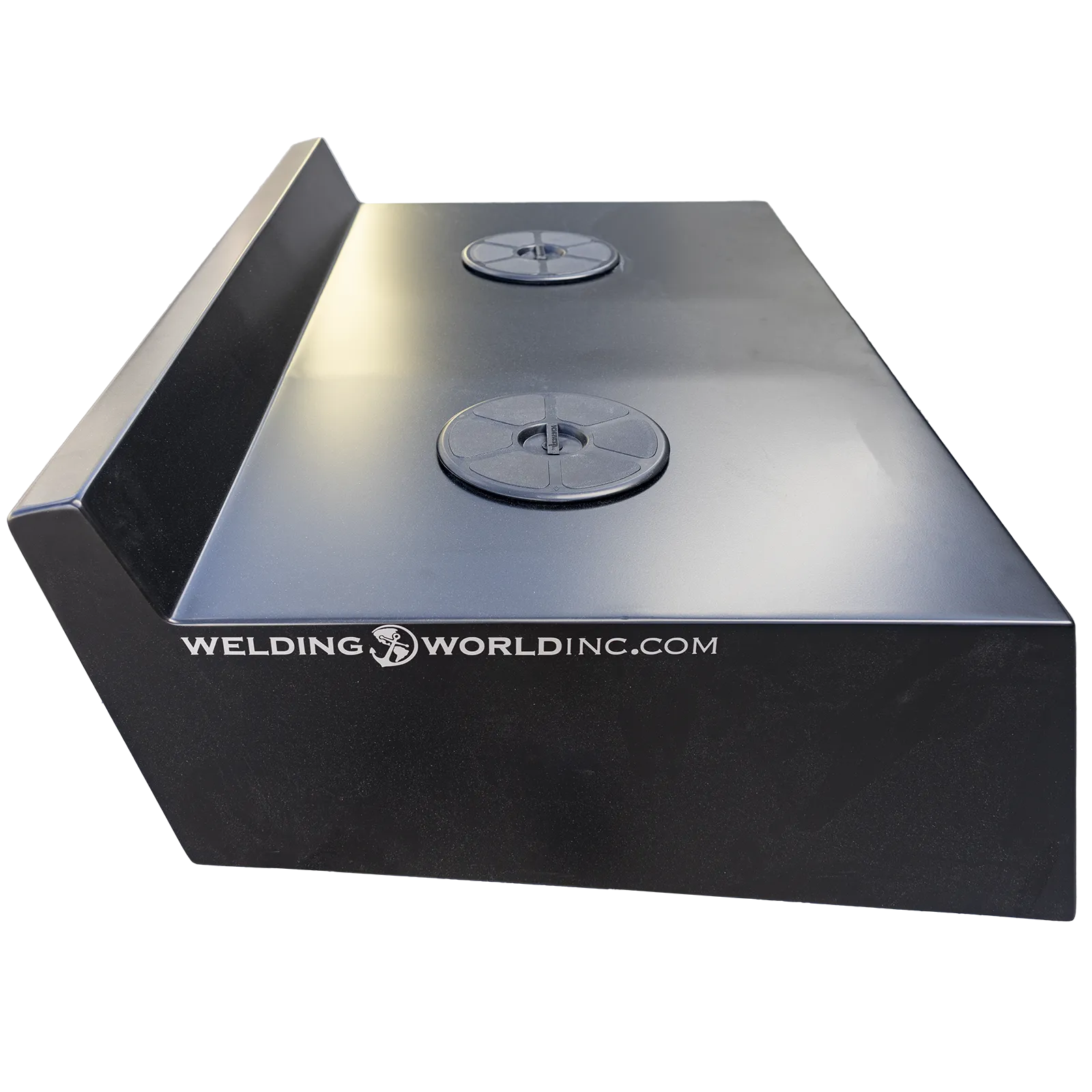

It offers an ample 33.5 inches of setback to better leverage your twin outboard's power, with a grippy Awlgrip textured 51.5 x 29.5 inches flat platform on top of the deep "V" airbox. It comes standard with a pre-drilled center-to-center engine mounting distance of 28.5 inches and is fully customizable to your boat's transom angle. This bracket is the ideal base design for your stern drive to outboard repower project when your boat already has a built-in swim platform.
At this price point, you get a fully proven design with lots of leeway for modding your bracket to fit your particular vision of the repower project, and if it's a minor one you can even get away with it at no additional cost.
And there’s nothing small-time about our outboard engine bracket products as our stuff is sold as OEM to most of all Greater Miami-based boat manufacturers and some of the biggest in upstate Florida, and we have type certifications from the NMMA and the ABYC. If you have outboard engine bracket questions don’t hesitate and do contact us for a no-compromise consultation.
Note: Please be advised that all of our brackets are made to order and ship via expensive LTL freight to your commercial address only (residential liftgate extra service is prohibitively expensive) so we won't accept returns. Check your boat's measurements carefully and make sure your order perfectly reflects what you want.
Highlights:
- All-aluminum construction using 0.375” (transom plate) and 0.250” (rest of the structure) thick cold-cut and formed Alcoa 6061 T6 and 5052 H32 series sheets.
- 130 gallons of added flotation volume in the deep-vee-shaped airbox for added dynamic stability.
- Exclusive dual-electrostatic powder-coatings: primer gloss powder coating for the ultimate marine environment protection. We first apply an electrostatic primer coat, oven-cure it, and then apply a thick, high-mil powder coating for the final external coating. No other competitor in the market goes that far to ensure your new bracket's appearance and durability.
- Awlgrip® Griptex textured, anti-slip treatment to the platform's top surface ensures perfect traction, safety, and durability when wet.
- Standard 2 x 3.75-inch saltwater specific sacrificial anodes (zincs).

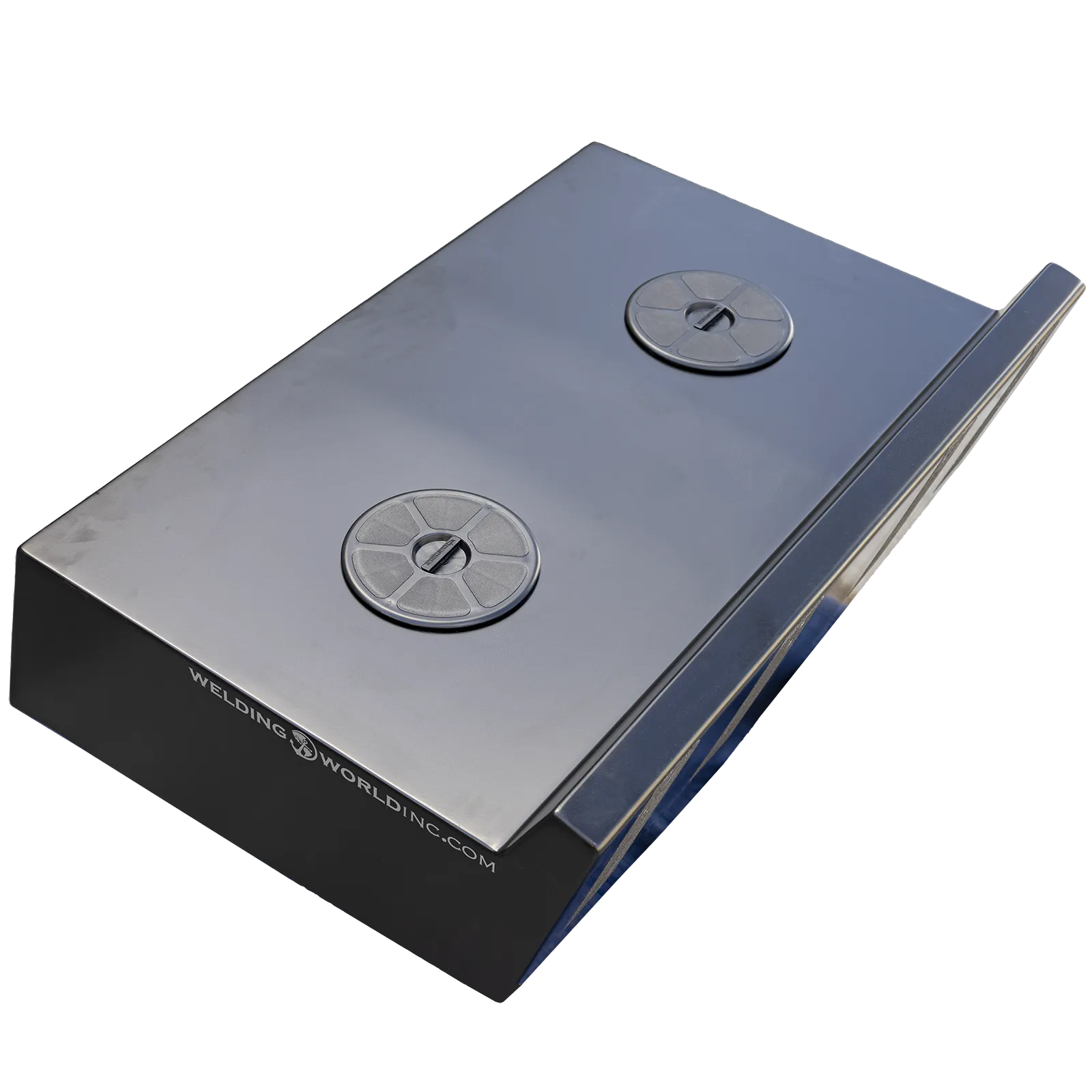

- Twist-off, wide 8-inch easy access marine spec hatch.

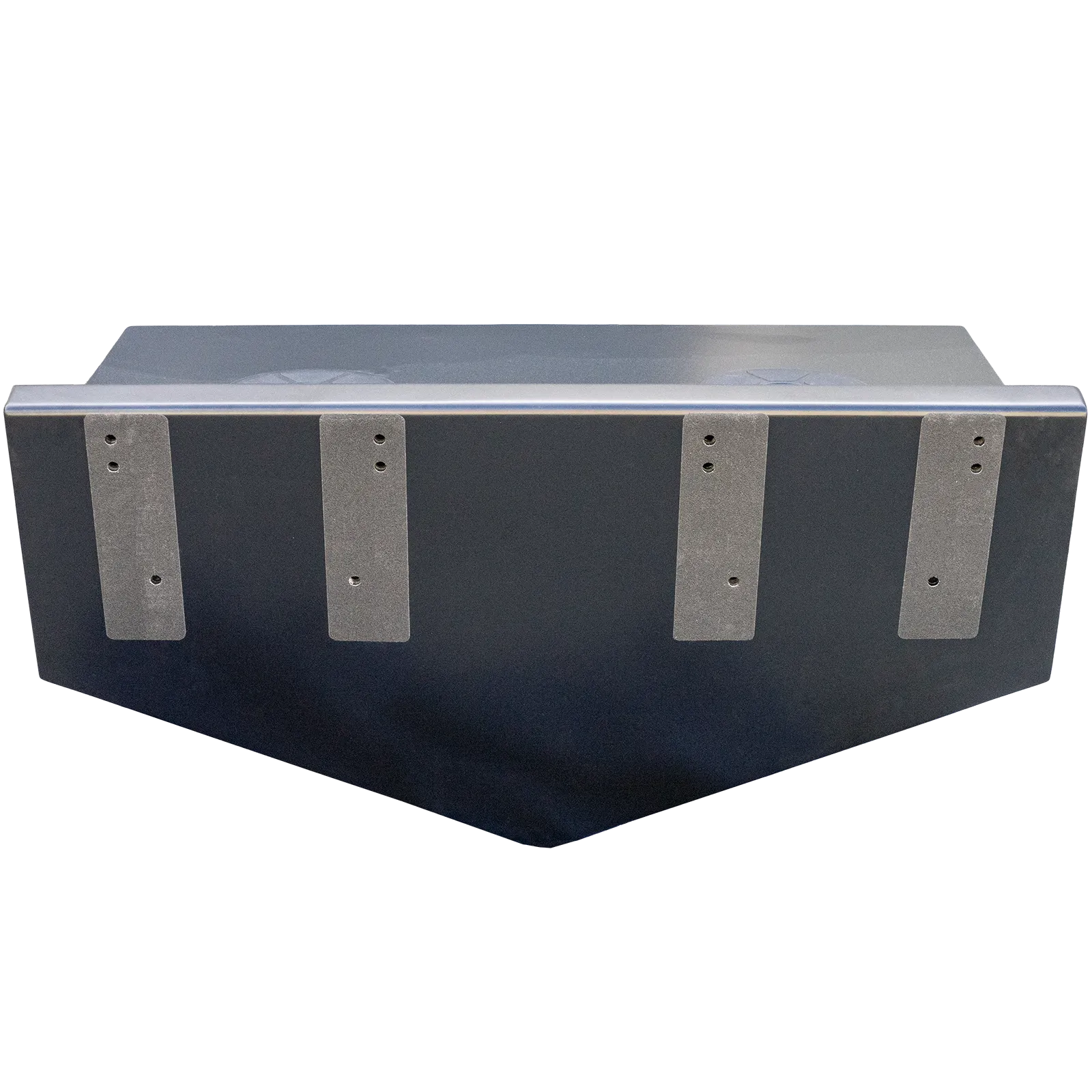

- Includes all mounting aluminum backing plates, SS screws, and SS nuts.
- 3-year limited warranty.
